ロンドン大学で MSc Computer Science: Computer systems モジュールを履修中。

講義内容に関して記録した個人的なスタディノートです。

全 12 週のうち 6〜12 週目の内容を記録します。（6 週目開始：2025 年 2 月 10 日 / 12 週目終了：2025 年 3 月 31 日）

Week 6: Processes and threads #

概要

This week introduces you to operating systems, which are software packages that coordinate a computer’s internal activities as well as oversee its communication with the outside world. It is a computer’s operating system that transforms the computer hardware into a useful tool. The goal is to understand what operating systems do and how they do it.

キーコンセプト

This topic includes:

  • components of an operating system
  • the concept of a process
  • handling competition between processes
  • attacks from outside and within
  • implementation
  • scheduling
  • inter-process communication
  • synchronisation.

レクチャーリスト

  • Process Description and Control
    • Lecture 1: Introduction to processes and threads
    • Lecture 2: What is a process?
    • Lecture 3: Process states
    • Lecture 4: Process description
    • Lecture 5: Process control
    • Lecture 6: Execution of the operating system
  • Threads
    • Lecture 7: Processes and threads
    • Lecture 8: Types of threads
    • Lecture 9: Multicore and multithreading
  • Scheduling
    • Lecture 10: Types of processor scheduling
    • Lecture 11: Scheduling algorithms

Lecture 1: Introduction to processes and threads #

今週の講義で学習することの全体像の説明。

Lecture 2: What is a process? #

Processes and Threads

  • The operating system manages the execution of applications by allocating necessary resources and switching between them using the processor.
  • This allows multiple applications to appear to run simultaneously.

What is a Process

  • A process includes a portion of program code and related data being executed by the processor.
  • Processes make up the basic unit of execution in most operating systems.

Process Control Block (PCB)

  • Each process is tracked using a data structure called a process control block.
  • The PCB stores key attributes, including:
    • Unique process identifier
    • Current state (e.g., running, waiting)
    • Priority level for scheduling
    • Program counter (address of the next instruction)
    • Memory pointers for code and data
    • Context data (register values)
    • I/O information (e.g., device requests, file usage)
    • Accounting data (start time, total execution time)

Managing Processes

  • The PCB allows a process to be paused, resumed, or terminated.
  • When a process is interrupted, its context (program counter and registers) is saved.
  • Another process’s context is then loaded to allow it to run.
  • This mechanism supports multi-processing by allowing multiple processes to share the CPU over time.

Lecture 3: Process states #

Process States

  • The dispatcher is responsible for switching between processes in memory and sending them to the CPU.
  • Each process has its program counter and context data saved when switched out and restored when resumed.

Process Execution and Memory Layout

  • Processes occupy varying sizes of memory depending on their instructions.
  • Dispatcher uses the program counter to track the current instruction and manages transitions between processes.

Process State Models

  • There are two common models for describing process states: the two-state model and the five-state model.
  • These are alternative ways to represent the lifecycle of a process.

Two-State Model

  • A simplified model where a process is either running or not running.
  • Not running includes any process that is waiting for CPU time or blocked.
  • Easy to implement but lacks detail and efficiency for complex scheduling.

Five-State Model

  • A more detailed and practical model used in modern operating systems.

  • Includes the following states:

    • New: the process is being created.
    • Ready: the process is waiting for CPU time.
    • Running: the process is currently being executed.
    • Blocked: the process is waiting for an event (e.g., I/O completion).
    • Exit: the process has finished or terminated.

This model provides better scheduling and process management by distinguishing between ready and blocked processes.

Lecture 4: Process description #

Process Description

  • The operating system is responsible for scheduling processes, allocating resources, and handling I/O requests.
  • To manage processes, the OS uses various control structures that store and track important process information.

Types of Control Structures

  • Memory tables: Track memory allocation for each process, including main and virtual memory.
  • I/O tables: Track the status and usage of input/output devices by processes.
  • File tables: Store file status, location, and whether a file is being read or written.
  • Process tables: Contain information about each process such as location, state, and resources.

Process Image

  • A process is stored as a process image, which includes:
    • Program code
    • Process data
    • Process control block (PCB)
    • Stack (used for function parameters and system call data)

Process Control Block (PCB)

  • One of the most important structures used to manage processes.
  • Contains:
    • Unique process identifier
    • Current state
    • Program counter
    • Register data
    • I/O and file information
    • Execution control and interrupt data

Execution and Memory Management

  • Part of the process image is loaded into main memory; the rest remains in virtual memory until needed.
  • The OS uses the PCB to switch processes in and out of the CPU, ensuring proper execution order.

Key Points

  • Control structures allow the OS to locate, manage, and schedule processes efficiently.
  • The PCB and related tables enable the OS to track the current state and resource usage of each process.

Lecture 5: Process control #

Process Control

  • Modern operating systems manage processes using two modes: privileged mode (kernel mode) and user mode.
  • Privileged mode allows execution of sensitive instructions like memory management and I/O control.
  • User mode restricts access and is used for running user-level applications.

Operating System Responsibilities

  • The OS is responsible for process management, memory management, I/O device management, and support functions.

Process Creation

  • Each new process receives a unique identifier.
  • The process is added to the process table.
  • Memory is allocated for the process image and its process control block (PCB).
  • The PCB is initialized with default values, including the process state (e.g., ready or ready suspend).
  • Resources such as files or input devices may be allocated upon request or inherited from a parent process.

Scheduling and Switching

  • The OS uses scheduling queues (often linked lists) to manage process states.
  • A process switch occurs when the OS regains control, possibly due to:
    • End of time slice
    • Interrupt
    • I/O request or completion
    • Memory fault (data not found in main memory)

Memory Management

  • The OS maintains memory allocation for both main and virtual memory.
  • It manages movement of memory blocks (pages and segments) between main memory and secondary storage.

I/O Device Management

  • The OS manages multiple I/O devices.
  • Tasks include buffer handling and resource allocation to processes requesting access.
  • Devices can interrupt each other depending on usage demands.

Support Functions

  • Small utility routines used by the OS for:
    • Handling interrupts
    • Updating system tables
    • Monitoring system performance
    • Assisting components like the dispatcher

Lecture 6: Execution of the operating system #

Execution of the Operating System

  • The operating system is not a single monolithic entity but a collection of modular programs responsible for specific tasks.
  • The processor determines when control is passed to the operating system.

Types of Operating System Execution Models

  • There are three main models:
    • Non-process kernel
    • Execution within user processes
    • Process-oriented (process-based) operating systems

Non-Process Kernel

  • The OS operates separately from user programs.
  • Only user applications are treated as processes.
  • OS runs in privileged mode with its own memory region and system stack.
  • The kernel restores process context when switching back to user mode.

Execution Within User Processes

  • The OS is executed within the address space of user processes.
  • Each process image includes:
    • Program and data region
    • User stack
    • Process control block
    • Special kernel stack for system functions
  • OS routines are executed by the user through interaction.
  • Code sharing allows OS routines to be present in multiple user processes.

Process-Oriented Operating Systems

  • Kernel functions are implemented as separate processes.
  • Enables modular design, easier development, and debugging.
  • Well-suited for multi-core or multiprocessing systems.
  • Promotes performance improvement through parallel execution.

Lecture 7: Processes and threads #

Processes and Threads

  • A process provides the resources for executing program code and includes elements such as code, open handles, unique ID, priority class, and more.
  • A thread is a schedulable unit within a process. Every process starts with a primary thread and can create additional threads.

Thread Characteristics

  • Threads within the same process share:
    • Virtual address space
    • System resources
    • Exception handlers
  • Each thread has its own:
    • Thread ID
    • Scheduling priority
    • Context (registers, stack)
    • Thread control block

Thread Creation and Scheduling

  • Threads are placed in a ready queue when created.
  • On multiprocessor systems, multiple threads can execute simultaneously.
  • Single-threading involves one execution path per process.
  • Multithreading enables multiple concurrent execution paths within one process.

Advantages of Threads over Processes

  • Faster to create and terminate than processes.
  • Lower overhead when switching between threads within the same process.
  • Threads communicate more efficiently than processes because they share memory and resources.

Thread Model Structure

  • Single-threaded model: One thread with shared stack and control structures.
  • Multi-threaded model: Shared address space with separate stacks and thread control blocks per thread.

Thread Pool

  • A thread pool is a collection of worker threads used to handle tasks asynchronously.
  • Reduces the need to frequently create/destroy threads.
  • Thread states must be tracked within the pool.

Thread States

  • Core states include:
    • Running: currently executing
    • Ready: waiting to be scheduled
    • Blocked: waiting for an event (e.g., I/O)
    • Unblocked: event complete, moved to ready
    • Finished: task complete, resources deallocated

Synchronization and Resource Sharing

  • Threads share address space and resources, so changes by one thread affect others.
  • Synchronization is required to prevent data conflicts or deadlocks.
  • Improper synchronization may lead to blocked threads or race conditions.

Lecture 8: Types of threads #

Types of Threads

  • There are two main types of threads:
    • User-level threads (ULT)
    • Kernel-level threads (KLT)

User-Level Threads (ULT)

  • Managed entirely in user space by the application.
  • The kernel has no awareness or involvement in thread management.
  • Threads are created and managed using thread libraries and utilities.
  • Thread switching does not require kernel involvement, reducing overhead.
  • Scheduling can be customized by the application (e.g., round-robin or priority-based).
  • No kernel updates are required to support ULT.

Advantages of ULT

  • Fast context switching since it avoids kernel mode.
  • Greater flexibility in scheduling policies.
  • No need for system-level support from the kernel.

Disadvantages of ULT

  • A system call from one thread blocks all threads in the same process.
  • ULTs cannot take full advantage of multiprocessing because the OS sees only one process.

Kernel-Level Threads (KLT)

  • Managed by the operating system or kernel.
  • Each thread is known and scheduled independently by the kernel.
  • Allows true concurrency; multiple threads can run in parallel on multiple processors.
  • If one thread is blocked, others in the same process can continue executing.
  • Examples include Microsoft Windows.

Advantages of KLT

  • Full support for parallel execution on multiprocessor systems.
  • Better responsiveness when threads are blocked.

Disadvantages of KLT

  • Thread switching requires a mode switch to the kernel, adding overhead.
  • Slower than ULT in terms of creation and context switching.

Combined Approach

  • Uses both user-level and kernel-level threads.
  • User threads are mapped to kernel threads.
  • A blocked user thread does not block the entire process.
  • Provides the benefits of both models.
  • Example: Solaris operating system.

Lecture 9: Multicore and multithreading #

Multicore and Multithreading Systems

  • Multicore systems can enhance performance for applications with many threads, but require careful design to avoid performance issues.
  • Concurrent processing handles one thread at a time but switches quickly between them.
  • Multiprocessing allows true parallel execution of multiple threads or processes simultaneously.

Thread-Based Approaches in Applications

  • Multiprocess applications (e.g., Oracle) use multiple single-threaded processes.
  • Java applications support multithreading at the core via the Java Virtual Machine.
  • Multi-instance applications (e.g., video editors) can run multiple instances in parallel on multicore systems.
  • Multithreading allows multiple instruction streams to run in parallel within a single process, reducing overhead.

Multithreading Characteristics

  • Threads in the same process share address space and resources, enabling efficient communication.
  • Threads in different processes can use shared memory for communication.
  • Thread switching is faster than process switching, but requires synchronization to avoid race conditions and deadlocks.

Windows and Multicore Multithreading

  • Windows processes are treated as objects, each with one or more threads.
  • Processes and threads in Windows have built-in synchronization capabilities.
  • Each process has a security access token, identifying the user and controlling access rights.
  • Threads in different processes can run concurrently; threads in the same process can run in parallel on multicore systems.
  • Windows uses object-oriented design to manage process creation and execution.
  • When a new process is created, it uses a template to define its structure and interface.
  • Each process has at least one thread, which can spawn additional threads.

Developer Considerations

  • OS handles many aspects of multithreading and multiprocessing, but developers must design applications carefully.
  • Efficient use of multicore systems depends on how threads and processes are managed within the application.

Lecture 10: Types of processor scheduling #

Processor Scheduling Overview

  • Processor scheduling assigns time slots to processes to maximize efficiency and throughput.
  • In a multiprogramming environment, processes alternate between CPU execution and waiting for I/O.
  • Scheduling determines which process runs next and manages limited CPU resources effectively.

Types of Scheduling

  • Scheduling is categorized by time scale:
    • Short-term scheduling
    • Medium-term scheduling
    • Long-term scheduling
    • Input/Output (I/O) scheduling

Short-Term Scheduling

  • Manages which process gets the CPU next.
  • Activated on events like:
    • Process blocking
    • Interrupts
    • System calls
  • Runs frequently and directly affects CPU responsiveness.

Medium-Term Scheduling

  • Manages which processes stay in main memory and which are swapped out.
  • Helps control the degree of multiprogramming.
  • Decides whether to suspend or resume processes from memory.

Long-Term Scheduling

  • Determines which programs are admitted as processes into the system.
  • Controls the rate at which new processes are created.
  • Regulates the overall level of multiprogramming.

I/O Scheduling

  • Determines the order in which I/O requests are handled.
  • Balances access to I/O devices between competing processes.

Lecture 11: Scheduling algorithms #

Overview of Scheduling Algorithms

  • Scheduling algorithms determine how CPU time is allocated to processes.
  • Two main types:
    • Preemptive: allows interruption of a running process.
    • Non-preemptive: process runs until completion or waiting state.

Short-Term Scheduling

  • Selects which process from the ready queue will run next.
  • Operates frequently and directly affects system performance.

Priority Scheduling

  • Each process is assigned a priority.
  • Higher priority processes are scheduled first.
  • Can be preemptive or non-preemptive.
  • Risk of starvation for low-priority processes; aging can prevent this.
  • Tie-breaking can be done using first-come-first-served.

Common Scheduling Algorithms

  • First-Come-First-Served (FCFS)

    • Non-preemptive.
    • Simple queue based on arrival order.
    • Can result in long average waiting times.

  • Round Robin

    • Preemptive.
    • Each process is assigned a fixed time slice (quantum).
    • Uses clock interrupts for switching.
    • Fair and starvation-free, but high overhead if quantum is too short.

  • Shortest Process Next (SPN)

    • Non-preemptive.
    • Selects the process with the shortest total execution time.
    • Efficient but may cause starvation of longer processes.

  • Shortest Remaining Time (SRT)

    • Preemptive version of SPN.
    • Chooses process with the shortest time left.
    • Can interrupt current process for a shorter one.

  • Highest Response Ratio Next (HRRN)

    • Non-preemptive.
    • Prioritizes based on a response ratio: (waiting time + service time) / service time.
    • Balances short and long processes to avoid starvation.

  • Feedback Scheduling

    • Preemptive.
    • Used when execution time is unknown.
    • Uses multiple queues with descending priorities.
    • Processes move down queues as they consume CPU time.

Fair-Share Scheduling

  • Used in multi-user systems.
  • Allocates CPU time based on user-level shares, not just processes.
  • Prevents users from monopolizing resources.
  • Priority weights can be adjusted per user (e.g., developers vs. managers).

Week 7: Input-output systems and file systems #

概要

In addition to the processor and a set of memory modules, the third key element of a computer system is a set of I/O modules. Each module interfaces to the system bus or central switch and controls one or more peripheral devices. The I/O module contains logic for performing a communication function between the peripheral and the computer bus.

キーコンセプト

This topic includes:

  • disks
  • files
  • caching
  • directories
  • redundancy
  • bus architecture
  • interrupt mechanism
  • OMA
  • device drivers
  • disk scheduling algorithms.

レクチャーリスト

  • Input-output (O/I) systems
    • Lecture 1: Introduction to input-output systems and file systems
    • Lecture 2: Input-output systems
    • Lecture 3: Input-Output models
  • The File system
    • Lecture 4: Device management
    • Lecture 5: Disk management
    • Lecture 6: Disk scheduling policies
    • Lecture 7: RAID
  • Cache Memory
    • Lecture 8: Cache memory

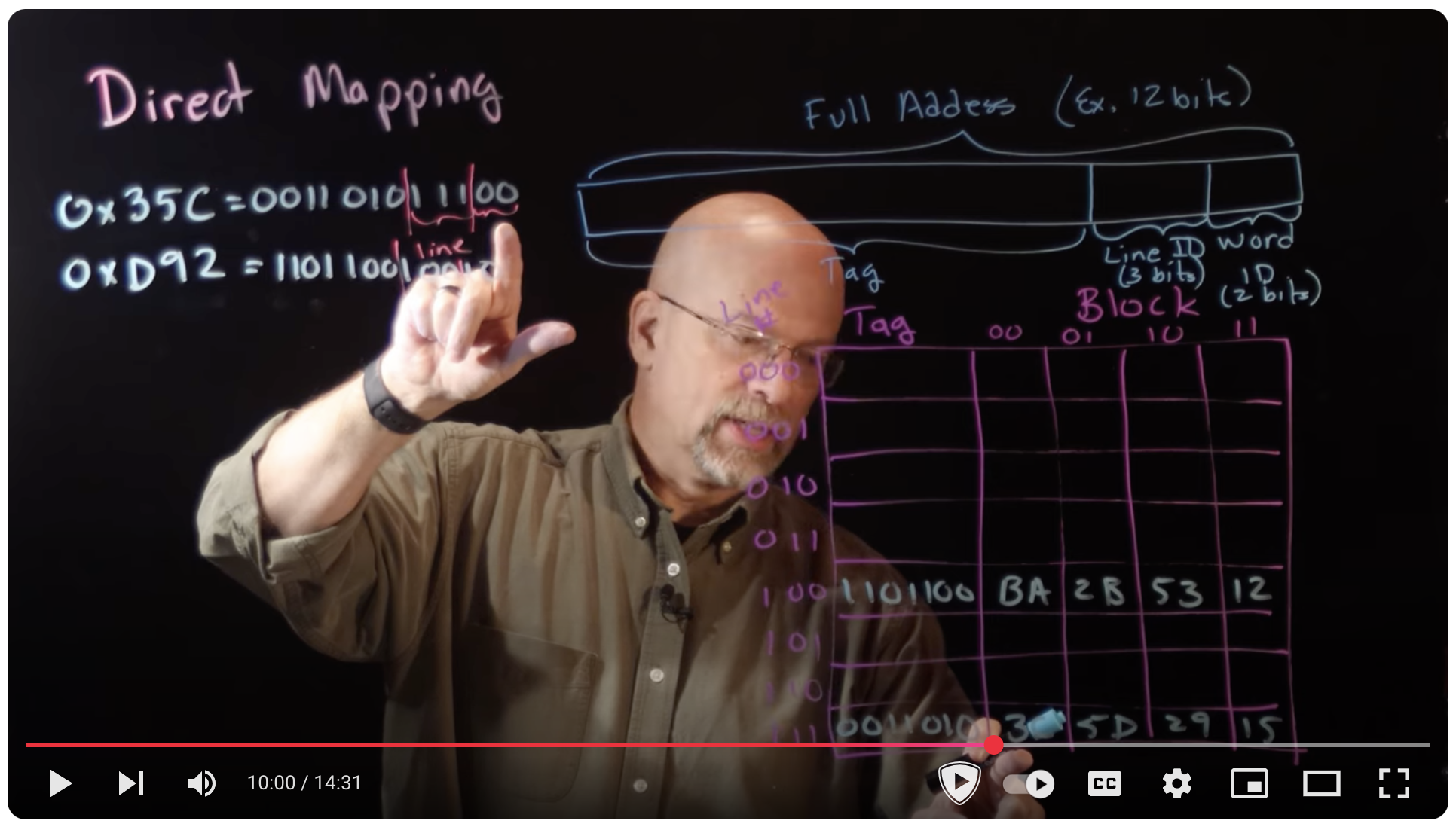

    • Lecture 9: Cache placement policies
    • Lecture 10: Cache replacement policies

Lecture 1: Introduction to input-output systems and file systems #

今週の講義で学習することの全体像の説明。

Lecture 2: Input-output systems #

  • Input-Output Modules are essential components of computer systems, in addition to the processor and memory.
  • I/O devices (e.g., monitors, keyboards, mice) cannot connect directly to the system bus due to differing operation methods, data standards, formats, and transfer speeds.
  • I/O modules handle communication between external devices and the system bus, manage data transfer rates, and can control multiple devices.
  • Monitors and keyboards are traditional input-output devices used for user interaction. The keyboard sends input signals, which are converted into bit patterns (ASCII or Unicode) by a transducer, then transmitted to the I/O module.
  • Monitors display character strings, including printable and control characters (e.g., tab, return). Printable characters include letters, numbers, punctuation, and special symbols.
  • Control characters influence the formatting of displayed or printed data.
  • Disk drives serve as both input and output devices for data storage and retrieval. They are managed by I/O modules that also provide status updates and error detection.
  • In hard disk drives, magnetic patterns are converted into bit data through a transducer and device buffer. Disk arms move radially across disk surfaces to read/write data.
  • Key takeaway: Each external device has unique characteristics (data format, speed), and I/O modules act as intermediaries to facilitate compatibility without needing hardware changes to the main computer.
  • This modular approach allows for easy integration of new hardware without altering the core system.

Lecture 3: Input-Output models #

Functions of I/O Modules

  • Control and timing
  • Communication with the processor
  • Communication with external devices
  • Data buffering
  • Error detection

Control and Timing

  • Coordinates data flow between processor, memory, and devices.
  • Decodes processor commands (e.g., read/write disk sectors).
  • Manages timing to prevent resource conflicts.

Status Reporting and Addressing

  • Reports device status (e.g., ready, busy, error).
  • Each I/O device has a unique address for identification.
  • Enables proper routing of commands and data.

Data Buffering

  • Handles different transfer rates between CPU/memory and devices.
  • Buffers data before sending/receiving to/from devices.
  • Prevents data loss and improves efficiency.

I/O Module Structure

  • Connects system bus to multiple external devices.
  • Contains data registers, status registers, and control logic.
  • Interfaces with processor via control lines and with devices via device-specific logic.

I/O Operation Techniques

  • Programmed I/O: CPU directly controls all I/O operations, leading to inefficiency.
  • Interrupt-Driven I/O: CPU initiates I/O and continues execution; interrupted when I/O completes.
  • Direct Memory Access (DMA):
    • Bypasses CPU by allowing direct data transfer between memory and I/O module.
    • CPU is involved only at start and end of transfer.
    • Frees CPU for other tasks.

Advanced: Direct Cache Access (DCA)

  • Used for high-speed networks (e.g., Ethernet, Wi-Fi).
  • Allows I/O devices to load data directly into CPU cache.
  • Reduces processor cycles and improves performance.
  • Especially useful for handling gigabyte-scale data transfers.

Lecture 4: Device management #

Functions of Device Management

  • Notifies applications of resource availability changes.
  • Allows adaptation to newly available or unavailable devices.
  • Ensures reliable communication between OS, applications, and hardware.

Device Drivers

  • Software that controls specific hardware devices.
  • Acts as a translator between OS/applications and hardware.
  • Hardware-dependent and OS-specific.
  • Simplifies high-level programming by abstracting hardware details.
  • Interfaces with various devices (e.g., printers, scanners, network cards).
  • Loadable drivers (e.g., in Windows/Linux) optimize memory usage.

Driver Identifiers and Development

  • Devices are identified by vendor ID and device ID.
  • Driver development requires deep knowledge of hardware/OS.
  • Logical device drivers are typically written by OS vendors.
  • Physical drivers are often developed by hardware manufacturers.

Driver Frameworks

  • User Mode Driver Framework:
    • Used for message-based devices.
    • Crashes do not affect the system.
  • Kernel Mode Driver Framework:
    • Used for power management, I/O cancellations, plug-and-play.
    • Closer to the hardware; system-critical.

Virtual Device Drivers

  • Emulate hardware in virtual environments (e.g., cloud services).
  • Intercepts hardware calls and routes them within a virtual machine.
  • Operates as function calls between virtual and real hardware interfaces.

I/O Software Layer Organization

  • User process initiates I/O request.
  • Request passes through multiple abstraction layers:
    • General I/O functions (e.g., read, write)
    • Device-specific drivers and interrupt handlers
    • Hardware-specific I/O operations

Buffering in I/O Operations

  • Prevents blocking and improves performance in multi-program environments.
  • Locks processes in memory during I/O to avoid being swapped out.

Buffering Techniques

  • Single Buffering:
    • Uses one buffer between memory and user space.
    • Simple and effective for sequential access.
  • Double Buffering:
    • Uses two alternating buffers.
    • Enhances speed and smoothness of I/O.
  • Circular Buffering:
    • Uses multiple buffers in a cycle.
    • Effective for continuous data flow.

I/O Organization and File Systems

  • Logical I/O:
    • Provides a high-level interface (e.g., open, read, write).
    • Abstracts device-specific details.
  • Device I/O:
    • Converts requests into device-specific commands.
    • May use buffering for performance.
  • Scheduling and Control:
    • Manages I/O scheduling, interrupt handling, and status reporting.

File System Components

  • Directory Management:
    • Maps file names to identifiers using file descriptors or index tables.
  • File System Layer:
    • Handles file structure and user operations (e.g., read, write).
  • Physical Organization:
    • Maps logical file access to physical disk addresses.
    • Manages secondary storage allocation.

Lecture 5: Disk management #

Functions of Disk Management

  • Manages storage on external memory devices (e.g., hard drives, USBs).
  • Organizes data into volumes, partitions, and clusters.
  • Provides access through logical structures using controllers and firmware.
  • Handles fragmentation, partitioning, and file system formats.

Disk Structure and Access

  • Disks are made of platters → tracks → sectors (smallest unit, ~512 bytes).
  • Clusters consist of multiple sectors; files are stored in clusters.
  • Disk controller translates physical geometry into logical structures.
  • OS manages files using logical sector numbers.
  • File Allocation Table (FAT) tracks used and free clusters.

Performance Metrics

  • Seek Time: Time to move disk head to the correct track.
  • Rotational Delay: Time for the sector to rotate under the head.
  • Access Time = Seek Time + Rotational Delay.
  • Disk Cache: Stores recently accessed sectors for faster I/O.

Fragmentation

  • Internal: Wasted space due to allocation rules.
  • External: Free space scattered in small blocks.
  • Data Fragmentation: Large files broken into scattered chunks.

Disk Partitioning

  • Divides disk into logical units (partitions).
  • Enables multi-OS setups, separate file systems, or backup regions.
  • Primary Partition: Referenced in MBR; one active at a time.
  • Extended Partition: Contains multiple logical partitions.
  • Trade-offs: Better organization but may reduce usable space and performance.

File Systems

  • Manage how files are stored and retrieved on storage devices.
    • Btrfs: Snapshotting, mirroring, compression.
    • Ext4: Large file and volume support (Linux default).
    • F2FS: Flash-friendly for mobile/flash memory.
    • JFS: Fast mounting and stable.
    • NILFS2: Log-structured, minimizes data loss.
    • NTFS: Windows default, supports journaling and access control.
  • Journaling:
    • Records changes before applying them to enable rollback and fault tolerance.

File Storage Types

  • Sequential Files:
    • Data stored/accessed in order.
    • Contains EOF marker or uses directory info to mark end.
  • Indexed Files:
    • Key-index pairs map to record locations.
    • Index stored as separate file for fast access.
  • Hash Files:
    • Uses hash function to map keys directly to storage buckets.
    • Provides fast access without index overhead.

Lecture 6: Disk scheduling policies #

Functions of Disk Scheduling

  • Manages the order of disk I/O operations to optimize access times.
  • Reduces average seek time and improves throughput.
  • Sits between device I/O layer and hardware in the system stack.
  • Maintains I/O request queues for each device in multi-program environments.

Basic Scheduling Policies

  • First-In-First-Out (FIFO):
    • Processes requests in the order they arrive.
    • Fair but may result in poor performance with random access patterns.
  • Last-In-First-Out (LIFO):
    • Processes the most recent request first.
    • Reduces seek time for sequential files.
    • Risk of starvation for older requests.
  • Priority Scheduling:
    • Assigns priority levels to requests.
    • Short jobs may preempt longer ones.
    • Risk of long delays for low-priority tasks.
  • Shortest-Service-Time-First (SSTF):
    • Selects request with the shortest seek distance.
    • Efficient but can lead to starvation for distant requests.

SCAN and Its Variants

  • SCAN:
    • Disk head moves in one direction, servicing requests in sequence until the end.
    • Then reverses direction.
    • Reduces starvation and improves fairness.
  • C-SCAN (Circular SCAN):
    • Only scans in one direction.
    • When reaching the end, returns to start without servicing requests.
    • Provides uniform wait time.
  • N-step-SCAN:
    • Divides request queue into fixed-size segments.
    • Each segment is scanned one at a time.
    • Prevents a single process from monopolizing the disk.
  • FSCAN:
    • Uses two queues.
    • One is processed while new requests are added to the other.
    • Ensures fairness and prevents new requests from blocking ongoing scans.

Lecture 7: RAID #

Functions of RAID

  • Combines multiple physical disks into a single logical drive.
  • Distributes data using a method called striping.
  • Provides redundancy for fault tolerance and performance improvement.
  • Allows simultaneous I/O from multiple disks.
  • Enables data recovery in case of hardware failure.

RAID 0 – Striping (No Redundancy)

  • Distributes data across all disks for parallel I/O.
  • Improves performance but offers no fault tolerance.
  • Suitable for speed-intensive applications.
  • One failure results in complete data loss.

RAID 1 – Mirroring

  • Duplicates all data across two disks.
  • Provides real-time backup and fault tolerance.
  • Requires double the disk space.
  • Ideal for critical system files.

RAID 2 – Bit-Level Striping with ECC

  • Uses synchronized disks and Hamming code for error correction.
  • All disks participate in each I/O.
  • High reliability but rarely used due to complexity and cost.
  • Replaced by modern error-correcting methods.

RAID 3 – Byte-Level Striping with Parity

  • Uses one dedicated parity disk.
  • Employs parallel access with small strips.
  • Can reconstruct data using XOR if a disk fails.
  • High data transfer rate but less efficient for multiple small I/O requests.

RAID 4 – Block-Level Striping with Dedicated Parity

  • Independent access to each disk.
  • One dedicated parity disk stores parity for all data blocks.
  • Efficient for high I/O frequency but suffers from write bottlenecks.

RAID 5 – Block-Level Striping with Distributed Parity

  • Parity blocks are distributed across all disks.
  • Eliminates single parity disk bottleneck.
  • Can tolerate one disk failure.
  • Balanced performance and fault tolerance.

RAID 6 – Block-Level Striping with Dual Parity

  • Uses two parity blocks for each data block.
  • Can withstand failure of two disks.
  • Excellent data availability and integrity.
  • Slightly slower writes due to dual parity updates.

Lecture 8: Cache memory #

Functions of Cache Memory

  • Stores frequently accessed data from main memory.
  • Reduces data access latency for the processor.
  • Exploits the principle of locality (temporal and spatial).
  • Acts as an intermediate layer between CPU and main memory.

Cache Hierarchy

  • L1 Cache: Closest to the core, fastest access, smallest size.
  • L2 Cache: Slower than L1, larger capacity.
  • L3 Cache: Shared among cores, largest capacity, highest latency.
  • Data flows: Main Memory → L3 → L2 → L1 → Processor.

Cache Access Process

  • Cache Hit: Requested data is found in the cache, returned to CPU.
  • Cache Miss: Data is not found; fetched from main memory and loaded into cache.

Cache Organization

  • Lines and Blocks:
    • Cache consists of multiple lines, each holding a block of K words.
    • Memory is block-organized; blocks are mapped into cache lines.
  • Index: Identifies specific cache line.
  • Tag: Portion of memory address to identify which memory block is stored.
  • Control Bits: Track if data has been modified (e.g., dirty bit).

Types of Cache Misses

  • Cold (Compulsory) Miss: First-time access; block not previously cached.
  • Conflict Miss: Multiple data blocks map to the same cache line.
  • Capacity Miss: Cache too small to hold all working data blocks.

Block Transfer & Performance

  • Cache and memory transfer happens in blocks (commonly 64 bytes or more).
  • Processor may start execution with only partial block loaded.
  • Efficient block transfer reduces performance penalties of cache misses.

Lecture 9: Cache placement policies #

Functions of Cache Placement Policy

  • Determines where a memory block should be placed in the cache.
  • Answers key questions:
    • Where to place a new memory block?
    • How to check if data is already cached?
    • Which block to replace when cache is full?

Direct-Mapped Cache

  • Each memory block maps to exactly one cache block.
  • Uses index bits and tag bits from the memory address.
  • Efficient and simple with low power usage.
  • Disadvantage: high chance of conflict; low cache hit rate.

Address Mapping in Direct Mapping

  • Index: selects the cache block using mod or least significant bits.
  • Tag: stores remaining bits to uniquely identify memory blocks.
  • Valid bit: marks if the data in the block is valid.
  • Larger blocks (e.g., 2 bytes) improve spatial locality.

Fully Associative Cache

  • Any memory block can go into any cache block.
  • No fixed index, entire address is used as tag.
  • Flexible and leads to high cache hit rate.
  • Disadvantage: requires checking all tags → high computational overhead.

Set-Associative Cache

  • Combines features of direct-mapped and fully associative caches.
  • Cache divided into sets; each memory address maps to one set.
  • Data can go into any block within that set.
  • N-way Set Associative: each set contains N blocks.
    • 2-way → 4-way → up to fully associative.

Data Lookup and Replacement

  • Index bits select set; tags are compared within the set.
  • Replacement policy (e.g., LRU) is applied if all blocks in a set are occupied.
  • Offers a balance between flexibility and cost.

Lecture 10: Cache replacement policies #

Functions of Cache Replacement Policies

  • Determine which cache block to evict when the cache is full.
  • Maintain cache size within its maximum capacity.
  • Improve performance by keeping frequently or recently used data accessible.
  • Also referred to as “eviction policies”.

Key Cache Replacement Algorithms

First-In-First-Out (FIFO)

  • Evicts the oldest data in the cache.
  • Simple and time-based; ignores usage frequency.
  • Does not consider whether data is still actively used.

Least Recently Used (LRU)

  • Removes the data that hasn’t been used for the longest time.
  • Assumes recently used data is more likely to be used again.
  • More effective than FIFO in many scenarios.

Least Frequently Used (LFU)

  • Evicts data that has been accessed the fewest times.
  • May keep recently accessed data if it’s frequently used.
  • Can struggle with tracking and updating usage counts.

Most Recently Used (MRU)

  • Opposite of LRU; evicts the most recently accessed data.
  • Useful in certain edge cases where older data is more valuable.
  • Less common than LRU or LFU.

Further material #

Week 8: Concurrency #

概要

We begin our study of concurrency by describing how to use it in practice. First, we explain where the concurrency in a system comes from and discuss the main ways to express concurrency. Then we describe the difference between ‘hard’ and ’easy’ concurrency: the latter is done by locking shared data before you touch it, the former in subtle ways that are so error-prone that simple prudence requires correctness proofs. We give the rules for easy concurrency using locks and discuss various issues that complicate the easy life: scheduling, locking granularity and deadlocks.

キーコンセプト

This topic includes:

  • concurrent programming
  • synchronisation
  • thread-level parallelism.

レクチャーリスト

  • Mutual exclusion and synchronisation
    • Lecture 1: Introduction to concurrency
    • Lecture 2: Mutual exclusion: Software approaches
    • Lecture 3: Principles of concurrency
    • Lecture 4: Mutual exclusion: Hardware support
    • Lecture 5: Semaphores
    • Lecture 6: Monitors
    • Lecture 7: Message passing
    • Lecture 8: The readers/writers problem
  • Deadlock and Starvation
    • Lecture 9: Principles of deadlock
    • Lecture 10: Deadlock detection, avoidance and prevention
    • Lecture 11: An integrated deadlock strategy

Lecture 1: Introduction to concurrency #

今週の講義で学習することの全体像の説明。

Lecture 2: Mutual exclusion: Software approaches #

Functions of Mutual Exclusion

  • Prevents multiple processes from accessing shared resources simultaneously.
  • Ensures consistent behavior in concurrent systems.
  • Protects critical sections — code areas where shared resources are accessed.

Contexts of Concurrency

  • Multiprogramming: Multiple processes share CPU time.
  • Modular Programming: Complex applications broken into concurrent processes.
  • Operating Systems: Often implemented as multiple concurrent threads/processes.

Requirements for Mutual Exclusion

  • Only one process can be in its critical section at a time.
  • A process halted outside its critical section must not interfere with others.
  • No deadlock or starvation should occur when requesting access.
  • If no process is in the critical section, one requesting should be granted access promptly.
  • A process should spend only a limited time in the critical section.

Key Concepts

  • Critical Section: Code that accesses shared resources.
  • Entry Section: Checks and waits for access to the critical section.
  • Exit Section: Releases the critical section and notifies others.
  • Atomic Action: Execution of the critical section is complete and uninterrupted.

Issues in Multithreading

  • Thread Interference: Concurrent threads interleave operations on shared data.
  • Memory Consistency Errors: Threads have inconsistent views of shared memory.

Software Solutions

  • Dekker’s Algorithm:
    • Uses flags and a turn variable to alternate access.
    • Complex but provides strict mutual exclusion.
  • Peterson’s Algorithm:
    • Simpler and more elegant.
    • Uses an array of flags and a turn variable.
    • Widely studied and used in educational settings.

Lecture 3: Principles of concurrency #

Functions of Concurrency

  • Enables interleaved or overlapping execution of processes.
  • Improves CPU utilization and system efficiency.
  • Occurs in single-processor (interleaving) and multiprocessor (parallel) systems.

Key Concepts

  • Critical Resource: A shared resource requiring exclusive access.
  • Critical Section: Part of the code that accesses a critical resource.
  • Thread Switching: OS may pause/resume threads mid-instruction.
  • Shared Mutable State: A variable shared between threads that can be modified.

Concurrency Issues

  • Race Conditions:
    • Occur when outcome depends on the timing/order of thread execution.
    • Example: Two threads increment a shared variable i simultaneously, causing incorrect results.
  • Read-Modify-Write Sequence:
    • A common pattern in critical sections.
    • Must be atomic to prevent interference.
  • Thread Interruption:
    • Threads can be paused mid-update, leading to inconsistent states.
    • Context switching can interrupt one thread and allow another to operate on outdated data.

Example

  • Thread 1 and Thread 2 both read and increment variable i.
  • If Thread 1 is interrupted before writing back, and Thread 2 updates i, Thread 1 may overwrite Thread 2’s result.
  • Final value depends on execution order → race condition.

OS Responsibilities in Concurrency

  • Track active processes via process control blocks (PCBs).
  • Allocate/deallocate resources fairly (CPU time, memory, files, I/O).
  • Protect process memory and resources from unintended access.
  • Ensure process output is independent of execution speed.

Lecture 4: Mutual exclusion: Hardware support #

Functions of Hardware Support for Mutual Exclusion

  • Enables safe concurrent access to shared resources.
  • Provides low-level mechanisms that enforce atomicity.
  • Complements software-based synchronization in both uniprocessor and multiprocessor systems.

Interrupt Disabling (Uniprocessor Systems)

  • Prevents context switches by disabling interrupts during critical section execution.
  • Guarantees mutual exclusion in single-processor systems.
  • Simple and effective but:
    • Cannot be used in multiprocessor environments.
    • Reduces system responsiveness and efficiency.

Limitations in Multiprocessor Systems

  • Multiple processors can access shared memory simultaneously.
  • Disabling interrupts on one CPU does not affect others.
  • Requires hardware-based synchronization primitives.

Hardware Atomic Instructions

  • Special machine instructions enforce mutual exclusion by:
    • Performing multiple actions (e.g., read + write) atomically.
    • Locking memory location during instruction execution.
  • Examples: Test-and-Set, Compare-and-Swap.

Advantages

  • Works on both single and multiprocessor systems.
  • Simple, fast, and easy to verify.
  • Supports multiple independent critical sections via different control variables.

Disadvantages

  • Busy waiting wastes CPU time while waiting for resource access.
  • Starvation may occur if some processes are continually bypassed.
  • Risk of deadlock when high-priority processes block low-priority ones holding a resource.

Lecture 5: Semaphores #

Functions of Semaphores

  • Used for process synchronization and signaling.
  • Help enforce mutual exclusion.
  • Prevent race conditions by controlling access to shared resources.

Types of Semaphore Operations

  • semWait(s):
    • Decrements the semaphore s.
    • If s becomes negative, the process is blocked.
  • semSignal(s):
    • Increments the semaphore s.
    • If the result is ≤ 0, a blocked process (if any) is unblocked.

Types of Semaphores

  • Counting Semaphore:
    • Holds a non-negative integer value.
    • Supports multiple resource instances.
    • Used when multiple processes can access a limited resource concurrently.
  • Binary Semaphore:
    • Holds only 0 or 1 (like a lock).
    • Used for mutual exclusion.
    • If s = 0, semWait blocks the process.
    • If s = 1, semWait sets s = 0 and proceeds.
    • semSignal sets s = 1 or unblocks a waiting process.

Queue Behavior

  • Strong Semaphore:
    • Uses FIFO queue.
    • Longest-waiting process is released first.
    • Guarantees freedom from starvation.
  • Weak Semaphore:
    • No specific order for unblocking.
    • May lead to starvation.

Mutual Exclusion via Semaphores

  • Only one process can manipulate a semaphore at a time.
  • Prevents simultaneous modification of shared resources.
  • Can use:
    • Software-based methods (e.g., Dekker’s, Peterson’s) – high overhead.
    • Hardware-based methods (e.g., atomic instructions, interrupt disabling) – more efficient.

Lecture 6: Monitors #

Functions of Monitors

  • A high-level synchronization construct for managing concurrent threads.
  • Ensures mutual exclusion and coordination between threads.
  • Encapsulates shared data and the procedures that access them.

Monitor Structure

  • Contains:
    • Local data variables (accessible only within the monitor).
    • Initialization code.
    • One or more procedures (monitor regions).
  • Only one thread may execute inside a monitor at a time.
  • Threads must acquire the monitor before executing its procedures.

Mutual Exclusion and Cooperation

  • Mutual Exclusion:

    • Only one thread can execute within a monitor region at a time.
    • Protects shared resources from race conditions.

  • Cooperation:

    • Threads work together by waiting for and signaling conditions.
    • Example: A reader thread waits for data to be written by a writer thread.

Condition Variables

  • Special variables used for thread synchronization inside a monitor.
  • Two key operations:
    • C.wait():
      • Suspends the calling thread.
      • Releases the monitor for other threads.
    • C.signal():
      • Wakes up one thread waiting on the condition C, if any.

Monitor Behavior (Analogy)

  • Monitor Entry Set = Hallway (threads waiting to enter monitor).
  • Wait Set = Waiting Room (threads waiting on a condition).
  • Critical Section / Exclusive Room = Room where only one thread is allowed.
  • Scheduler = Chooses which thread can enter the monitor next.

Thread Actions in Monitor

  • Entering the monitor = Entering the building.
  • Acquiring the monitor = Entering the exclusive room.
  • Releasing the monitor = Leaving the exclusive room.
  • Waiting on a condition = Going to the waiting room.
  • Being signaled = Returning from waiting room to exclusive room.

Lecture 7: Message passing #

Functions of Message Passing

  • Facilitates communication and synchronization between processes.
  • Useful in single systems, multiprocessor systems, and distributed systems.
  • Can be used to implement mutual exclusion.

Message Passing Primitives

  • send(destination, message)
  • receive(source, message)
  • Sender may wait (blocking) or proceed (non-blocking).
  • Receiver may wait for message or skip if none is available.

Synchronization Requirements

  • Receiver cannot receive before a message is sent.
  • Synchronization ensures both sender and receiver are coordinated.

Addressing Mechanisms

  • Direct Addressing:

    • Sender specifies the recipient directly.
    • Receiver may specify the sender or receive from any.

  • Indirect Addressing:

    • Uses mailboxes (message queues) shared among processes.
    • Allows decoupling of sender and receiver.
    • Supports one-to-one, one-to-many, many-to-one, and many-to-many models.

Message Structure

  • Messages may be fixed or variable in length.
  • Typically divided into:
    • Header: Contains metadata (source, destination, type, etc.)
    • Body: Contains actual message data.
  • May include fields for:
    • Message type
    • Sequence number
    • Priority
    • Links (for message chaining)

Queuing Policy

  • Default: FIFO (First-In-First-Out).
  • Optionally: priority-based or custom selection criteria by receiver.

Mutual Exclusion via Message Passing

  • Shared mailbox initialized with a single token-like message.
  • Process must receive the message to enter its critical section.
  • After executing, the process sends the message back to the mailbox.
  • Ensures only one process enters the critical section at a time.

Lecture 8: The readers/writers problem #

The Readers/Writers Problem

  • A classic synchronization problem involving shared data access.
  • Readers: Only read the data; multiple readers can read simultaneously.
  • Writers: Modify the data; only one writer can access at a time.
  • No readers are allowed while a writer is writing.
  • Writers must exclude all other readers and writers.

Mutual Exclusion Strategy

  • The section of code that accesses shared data is considered a critical section.
  • Writers require full mutual exclusion.
  • Readers do not need to exclude other readers.

Semaphore-Based Solutions

  • Semaphores are used to enforce mutual exclusion for both readers and writers.
  • Writers gain exclusive access: block both readers and other writers.
  • Readers share access: multiple readers may access simultaneously if no writer is active.

Potential Issues

  • Starvation of Writers:
    • If readers continuously access the data, writers may be blocked indefinitely.
    • This occurs if new readers are always allowed in while writers are waiting.

Solutions to Prevent Starvation

  • Block New Readers:
    • When a writer indicates intent to write, prevent new readers from entering.
    • Existing readers complete, then writer gets access.
  • Priority Messaging System:
    • A controller process manages access requests via message passing.
    • Three mailboxes handle different message types (e.g., read request, write request).
    • Writer requests are prioritized by the controller using message metadata.

Lecture 9: Principles of deadlock #

Definition of Deadlock

  • A permanent blocking of a set of processes.
  • Occurs when each process is waiting for an event that can only be triggered by another blocked process.
  • Common in systems where processes compete for shared resources.

Example

  • Thread 1 locks Resource A and waits for Resource B.
  • Thread 2 locks Resource B and waits for Resource A.
  • Both threads are blocked by each other — a deadlock.

Necessary Conditions for Deadlock

  • Mutual Exclusion:

    • Only one process can use a resource at a time.
    • Shared resources cannot be simultaneously accessed.

  • Hold and Wait:

    • A process holding at least one resource is waiting to acquire additional resources held by others.

  • No Preemption:

    • Resources cannot be forcibly taken from processes; must be released voluntarily.

  • Circular Wait:

    • A circular chain of processes exists, each waiting on a resource held by the next.

Lecture 10: Deadlock detection, avoidance and prevention #

Deadlock Strategies Overview

  • No single strategy works in all situations.
  • Three main approaches:
    • Detection
    • Avoidance
    • Prevention

Deadlock Detection

  • Resources are granted freely when available.
  • System periodically checks for circular wait conditions.
  • Detection uses a request matrix:
    • Tracks resource requests per process.
    • Marks processes that can finish and release resources.
    • Unmarked rows at the end = deadlocked processes.

Deadlock Prevention

  • Prevents one or more of the necessary conditions for deadlock:
    • Mutual Exclusion:
      • Allow shared access where possible (e.g., read-only).
    • Hold and Wait:
      • Require processes to request all needed resources at once.
      • Inefficient and often unrealistic.
    • No Preemption:
      • Force processes to release resources before making new requests.
      • Requires rollback or recovery mechanisms.
    • Circular Wait:
      • Impose a strict ordering on resource acquisition.

Deadlock Avoidance

  • Allows all conditions for deadlock but avoids unsafe states.
  • Makes dynamic decisions to avoid reaching a deadlock.
  • Two approaches:
    • Do not start a process if it might eventually cause deadlock.
    • Do not grant a resource request if it might lead to deadlock later.
  • Allows more concurrency than prevention.

Lecture 11: An integrated deadlock strategy #

Integrated Deadlock Strategy

  • Combines multiple techniques (prevention, avoidance, detection).
  • Resources are grouped into resource classes.
  • Circular wait between classes is prevented via linear resource ordering.
  • Within each class, different strategies may be applied.

Swappable Space

  • Prevention strategy: All required resources must be allocated at once.
  • Effective if maximum resource needs are known in advance.
  • Related to hold-and-wait prevention.
  • Avoidance is also possible if requirements are declared early.

Process Resources

  • Avoidance strategy is effective: processes declare required resources ahead of time.
  • Prevention by ordering is also applicable.
  • Suitable for resources like open files or I/O devices.

Main Memory

  • Prevention via preemption:
    • A process can be swapped out to secondary memory.
    • Frees space to resolve potential deadlocks.

Internal Resources

  • Prevention via resource ordering:
    • Ensures resources are requested in a fixed global order.
    • Helps prevent circular wait conditions.

Week 9: Protection and security #

概要

In this topic we provide an overview of security threats. We begin with a discussion of what we mean by computer security. Computer security deals with computer related assets that are subject to a variety of threats and for which various protection measures are taken. We examine two broad categories of computer and network security threats: intruders and malicious software. Cryptographic algorithms, such as encryption and hash functions, play a role both in computer security threats and computer security techniques.

キーコンセプト

This topic includes:

  • security threats
  • viruses
  • worms
  • bots
  • rootlet
  • cryptographic algorithms.

レクチャーリスト

  • Computer security
    • Lecture 1: Introduction to protection and security
    • Lecture 2: Threats, attacks and assets
    • Lecture 3: Intruders
  • Malicious Software
    • Lecture 4: Viruses, worms and bots
    • Lecture 5: RootkitsPage
    • Lecture 6: Encryption

Lecture 1: Introduction to protection and security #

今週の講義で学習することの全体像の説明。

Lecture 2: Threats, attacks and assets #

Threats, Attacks, and Assets

  • The OS plays a key role in ensuring system security and reliability.
  • A reliable OS must prevent data loss from crashes or unauthorized access.

User Accounts and Privileges

  • Users are assigned accounts with:
    • Username and password
    • Privileges defined by an administrator
  • Administrators can:
    • Modify system settings
    • Manage users and privileges
    • Install or remove software

Auditing and Monitoring

  • Auditing software logs:
    • Failed login attempts
    • Suspicious activity
    • Potential sniffing software
  • Helps detect unauthorized access or system misuse

Types of Attacks

  • Internal Attacks
    • Authorized users elevate privileges or bypass access controls
    • Memory or file managers may be tricked into exposing protected resources
  • External Attacks
    • Remote login abuse
    • Brute-force password attacks
    • Hacking tools available for purchase make attacks easier

CPU-Level Security

  • Modern CPUs support privilege levels:
    • Privileged Mode: full instruction set, memory/register access
    • Non-Privileged Mode: limited instruction set
  • Memory protection: upper/lower bounds restrict access
  • Privileged instructions are restricted to protect system integrity

Lecture 3: Intruders #

Intruders

  • Most computers today are connected to networks, especially the internet.
  • This exposes systems to external intruders and various forms of cybercrime:
    • Vandalism
    • Denial-of-service (DoS) attacks
    • Intellectual property theft

Targets of Attack

  • Attacks typically target:
    • Software vulnerabilities
    • Hardware components
    • End users (considered weak links)

Evolving Threat Landscape

  • Earlier threats included worms (e.g., CodeRed).
  • Modern concerns focus on:
    • Spyware
    • Trojan horses
    • Botnets
  • The internet is now the primary attack vector.

Goals of Intruders

  • Gain unauthorized access to systems
  • Escalate privileges
  • Steal credentials (e.g., password databases)

Severity of Intrusions

  • Benign: Curious individuals exploring systems
  • Malicious: Reading/modifying data or disrupting operations

Types of Intruders

  • Masquerader
    • External attacker
    • Gains access via stolen credentials or bypassing authentication
  • Misfeasor
    • Internal legitimate user
    • Abuses existing privileges to access unauthorized resources
  • Clandestine User
    • Insider or outsider
    • Gains administrative control and disables security mechanisms (e.g., auditing)

Lecture 4: Viruses, worms and bots #

Types of Malware Attacks

  • Malware can be:
    • Local (installed like regular software)
    • Remote (executed from another computer over a network)

Local Software Attacks

  • Virus
    • Infects host programs
    • Executes with host
    • May replicate or cause damage (e.g., data corruption)
  • Worm
    • Autonomous program that spreads via networks
    • Replicates rapidly, consuming resources
    • Can significantly degrade system/network performance
  • Trojan Horse
    • Disguised as a legitimate program
    • Lies dormant until triggered (date or signal)
    • Often spread via email attachments
  • Spyware
    • Collects and transmits user activity data
    • Used for:
      • Tracking keypresses (passwords, credit cards)
      • Building user profiles
      • Corporate/industrial espionage

Remote Software Attacks

  • Denial of Service (DoS)
    • Floods a system (e.g., web server) with requests
    • Overloads memory and crashes system
  • Distributed Denial of Service (DDoS)
    • DoS attack launched from multiple compromised machines (botnet)
    • Botnets may be rented out for profit

Phishing

  • Social engineering attack via email
  • Poses as a legitimate institution to request sensitive info
  • Often used to steal:
    • Personal information
    • Login credentials
    • Financial data

Lecture 5: RootkitsPage #

What is a Rootkit?

  • A type of malware that provides unauthorized admin-level access to a device.
  • Operates near or within the OS kernel, hiding its presence.
  • Can target software, firmware, and even hardware.

Installation Methods

  • Exploiting vulnerabilities (unpatched OS/software)
  • Bundled malware (infected PDFs, pirated media, shady apps)
  • Phishing attacks (user unknowingly installs malware)

Rootkit Capabilities

  • Hide other tools (e.g. keyloggers)
  • Launch DDoS attacks or send spam
  • Disable antivirus and security patches
  • Provide persistent, stealthy access

Types of Rootkits

  • Hardware/Firmware Rootkits
    • Target BIOS, routers, or hard drives
    • Hard to detect and remove
  • Bootloader Rootkits
    • Replace OS bootloader
    • Load before OS starts
  • Memory Rootkits
    • Reside in RAM, vanish on reboot
    • Affect performance and remain stealthy
  • Application Rootkits
    • Replace or alter standard programs (e.g. Notepad, Paint)
    • Hard to detect by users, often caught by antivirus
  • Kernel-Mode Rootkits
    • Modify OS kernel functions
    • Extremely dangerous; deep system control
  • Virtual Rootkits
    • Host the OS as a virtual machine
    • Avoid modifying the actual OS directly

Famous Example

  • Stuxnet (2010)
    • Worm that targeted Iranian nuclear facilities
    • Likely state-sponsored (believed to be U.S. and Israel)
    • Highlighted the use of rootkits in cyber warfare

Lecture 6: Encryption #

Encryption: An Overview

Cryptography vs Encryption

  • Cryptography: Study of secure communication.
  • Encryption: A cryptographic tool used to encode data so unauthorized parties can’t understand it.

Why Encryption Matters

  • Traditional methods like passwords are vulnerable to attacks.
  • Encryption ensures confidentiality, even if data is intercepted.

HTTPS and Secure Communication

  • HTTP → HTTPS: Secure version using TLS (Transport Layer Security).
  • TLS succeeded SSL (Secure Sockets Layer).
  • Browsers show a padlock icon to indicate secure TLS communication.

Types of Encryption

  • Symmetric-Key Encryption
    • Uses a single key for both encryption and decryption.
    • Faster but requires secure key sharing.
    • Used in HTTPS, SSL, and securing local data.
  • Public-Key Encryption (Asymmetric)
    • Uses two keys:
      • Public Key: Used to encrypt data.
      • Private Key: Used to decrypt data.
    • Public key is shared, private key is kept secret.
    • Adds security for data transmission.

Certificates and Trust

  • Challenge: Making sure the public key belongs to the right party.
  • Solution: Certificates issued by Certificate Authorities (CAs).
    • Validate ownership of keys.
    • Web browsers are shipped with trusted CAs.
    • Users can inspect certificates of websites.

Further material #

Week 9: Multiple processor systems, network programming and the internet #

概要

We study how computers are linked together to share information and resources. Our study will include the construction and operation of networks, applications of networks, multiple processor and multi-core systems. We will also discuss the role of the graphics processing unit (GPU) in modern computing environments.

キーコンセプト

This topic includes:

  • multiple processor systems
  • network programming
  • the internet
  • The world wide web
  • internet protocols
  • client-server.

レクチャーリスト

  • Multiple processor systems (MPS)
    • Lecture 1: Introduction to multiple processor systems, network programming and the internet
    • Lecture 2: Multiprocessor and multicore scheduling
    • Lecture 3: Multicore computers – Hardware and software performance
  • Computer networks
    • Lecture 4: Network fundamentals
    • Lecture 5: The internet
    • Lecture 6: Internet protocols

Lecture 1: Introduction to multiple processor systems, network programming and the internet #

今週の講義で学習することの全体像の説明。

Lecture 2: Multiprocessor and multicore scheduling #

Multiprocessor and Multicore Scheduling

  • Most modern systems contain multiple processors, requiring specialized scheduling strategies.

Types of Multiprocessor Systems

  • Loosely Coupled: Each processor has separate memory and I/O channels.
  • Functionally Specialized: A general-purpose processor is assisted by embedded specialized processors.
  • Tightly Coupled: Processors share main memory and are managed by the operating system.

Granularity in Parallelism

  • Granularity refers to the ratio of computation time to communication time.
  • It affects scheduling efficiency and system performance.

Categories of Parallelism by Granularity

  • Independent Parallelism: No synchronization; similar to multiprogramming on a uniprocessor.
  • Coarse and Very Coarse-grained: Some synchronization; requires minimal software changes.
  • Medium-grained: Threads within a single process; requires explicit coordination.
  • Fine-grained: Many small tasks; enables load balancing but increases overhead.

Levels of Parallelism

  • Instruction Level: Approximately 20 instructions.
  • Loop Level: Approximately 500 instructions.
  • Procedure Level: A few thousand instructions.
  • Application Level: Tens of thousands of instructions.

Design Considerations for Scheduling

  • Process Assignment: Can be dynamic or dedicated; affects scheduling overhead.
  • Multiprogramming on Processors: Enables better utilization and performance.
  • Process Dispatching: Simpler methods like FIFO may be sufficient for systems with few processors.

Thread Usage in Multiprocessor Systems

  • Threads enable concurrent execution in shared memory space.
  • Thread switching is cheaper than process switching.
  • Parallel execution of threads across processors improves performance.

Multiprocessor Scheduling Strategies

  • Load Sharing: Global ready queue; idle processors pick threads from it.
  • Gang Scheduling: Related threads are scheduled to run simultaneously on dedicated processors.
  • Dedicated Processor Assignment: Fixed allocation of processors to threads for the entire program duration.
  • Dynamic Scheduling: The number of threads may change during execution.

Multicore Thread Scheduling

  • Similar to multiprocessor scheduling.
  • Operating systems like Windows and Linux perform load balancing.
  • Standard strategies may not fully utilize multicore performance.

Lecture 3: Multicore computers – Hardware and software performance #

Multicore Computers and Real-Time Scheduling

  • Real-time computing is increasingly important, especially for systems responding to external events.

Real-Time Tasks

  • Hard Real-Time Tasks: Must meet deadlines; failure can cause fatal errors.
  • Soft Real-Time Tasks: Preferable to meet deadlines, but not mandatory.
  • Periodic Tasks: Occur at regular intervals.
  • Aperiodic Tasks: Occur irregularly, with specific start/finish deadlines.

Real-Time Operating System Characteristics

  • Determinism: Ability to perform operations at predefined times. Depends on interrupt handling speed and system capacity.
  • Responsiveness: Time taken to acknowledge and process an interrupt. Affected by interrupt handling and system hardware.
  • Response Time: Combination of determinism and responsiveness, critical for meeting timing requirements.
  • User Control: Users can adjust task priorities, memory usage, and scheduling policies.
  • Reliability: Essential for real-time systems; failures can lead to serious consequences (e.g., in aviation or medical systems).
  • Fail-Soft Operation: System should continue operation with minimal loss and maintain stability for critical tasks.

Real-Time Scheduling Strategies

  • Static Table-Driven Approaches: Predefined execution schedules created via static analysis.
  • Static Priority-Driven Preemptive Approaches: Priorities are assigned via static analysis; no fixed schedule created.
  • Dynamic Planning-Based Approaches: Feasibility is analyzed at runtime before accepting a task.
  • Dynamic Best-Effort Approaches: No feasibility check; system attempts to meet all deadlines and aborts missed ones.

Lecture 4: Network fundamentals #

Networks and Network Communication

  • Networks allow data and resource sharing among multiple users and computers.
  • Network software has evolved from simple utilities to complex communication systems supporting billions of devices.

Types of Networks

  • Personal Area Network (PAN): Short-range connections (e.g., wireless keyboard/mouse).
  • Local Area Network (LAN): Connects computers within a building (e.g., offices, file and printer sharing).
  • Metropolitan Area Network (MAN): Covers a community or city-sized area.
  • Wide Area Network (WAN): Covers large geographical distances (e.g., the Internet).

Network Topologies

  • Bus Topology: All devices connected to a single communication line (logical bus).
  • Star Topology: Devices connected to a central node (access point).
  • The distinction lies in whether communication is direct or mediated by a central device.

Protocols

  • Protocols define rules for network communication.
  • Ethernet-based bus networks use CSMA/CD (Carrier Sense Multiple Access with Collision Detection).
  • Devices listen before transmitting and handle collisions with random delays.

Combining Networks

  • Repeaters: Extend signals across long buses.
  • Bridges: Forward messages based on destination addresses; filter unnecessary traffic.
  • Switches: Multi-port bridges connecting several buses like wheel spokes.

Process Communication

  • Inter-Process Communication (IPC): Processes exchange data to coordinate.
  • Client-Server Model: Clients request services from a server (e.g., print servers).
  • Peer-to-Peer (P2P) Model: Processes act as both service providers and consumers (e.g., messaging, games).

Distributed Systems

  • Cluster Computing: Independent computers work together like a supercomputer.
  • Grid Computing: Loosely coupled systems using idle computing resources (e.g., scientific projects).
  • Cloud Computing: Virtualized, on-demand computing resources (e.g., AWS EC2).

Lecture 5: The internet #

The Internet

  • The Internet (capital I) is a global system of interconnected networks that originated from 1960s research.
  • Its purpose was to enable communication across networks and maintain connectivity despite local disruptions.

Internet Structure and ISPs

  • The Internet is organized hierarchically through Internet Service Providers (ISPs).
  • Tier 1 ISPs: High-speed, global backbones of the Internet.
  • Tier 2 ISPs: Regional providers connected to Tier 1.
  • Tier 3 (Access) ISPs: Provide connections to individual homes and businesses.
  • End systems or hosts (e.g., PCs, smartphones) connect to the Internet through access ISPs.

IP Addressing and Domain Names

  • Devices on the Internet are assigned unique IP addresses (e.g., 192.168.0.1).
  • IP address allocation is managed by ICANN and distributed to ISPs in blocks.
  • Domain names offer a human-readable alternative to IPs and must be registered through ICANN-approved registrars.
  • DNS (Domain Name System) translates domain names into IP addresses via name servers.
  • A DNS lookup is used to resolve a domain name to an IP address.

Internet Applications

  • Early applications included email, basic web browsing, and text messaging.
  • Email uses applications like Outlook or Thunderbird and is transmitted using network protocols.
  • VoIP (Voice over Internet Protocol) allows voice communication over the Internet (e.g., Skype, Zoom).
  • Streaming audio and video (e.g., Netflix) now dominates Internet traffic.

Streaming Methods

  • Unicast: One sender transmits data to one receiver.
  • En-unicast: One sender transmits to many receivers individually.
  • Multicast: One sender sends a single message to multiple clients via special routing.
  • Most media services use OnDemand unicast streaming.

Content Delivery Networks (CDNs)

  • CDNs are distributed server networks that store and deliver media closer to end users.
  • They reduce latency and improve scalability for large-scale streaming platforms.

Lecture 6: Internet protocols #

Internet Protocols

  • Internet communication is managed through a four-layer hierarchy: application, transport, network, and link layers.
  • Each layer consists of software responsible for different stages of message transmission.

Application Layer

  • Contains software (clients/servers) for tasks like file transfers and media playback (e.g., FTP).
  • Uses DNS to translate domain names to IP addresses.
  • Sends and receives messages through the transport layer.

Transport Layer

  • Ensures proper message formatting and breaks long messages into packets.
  • Adds sequence numbers for reassembly at the destination.
  • Passes packets to the network layer for routing.
  • Receives packets from the network layer and reconstructs the original message.
  • Uses port numbers to direct messages to appropriate application software.

Network Layer

  • Decides packet routing based on forwarding tables.
  • Determines the next hop and passes packets to the link layer.
  • Recognizes when packets reach their destination and passes them to the transport layer.

Link Layer

  • Handles the physical and data link aspects of transmission.
  • Responsible for the actual transfer of packets across physical network hardware.

Port Numbers and Conventions

  • Port numbers help identify which application should receive data (e.g., port 25 for SMTP email).
  • Applications listen on specific ports to receive relevant packets.

TCP/IP Protocol Suite

  • Collection of standards supporting internet communication.
  • Includes protocols like TCP (Transmission Control Protocol) and IP (Internet Protocol).

TCP vs UDP

  • TCP (Reliable Protocol):
    • Connection-oriented.
    • Ensures delivery with acknowledgments and packet retransmissions.
    • Suitable for applications where reliability is crucial (e.g., email, web).
  • UDP (Unreliable Protocol):
    • Connectionless and faster.
    • No acknowledgment or retransmission.
    • Suitable for low-latency applications (e.g., online gaming, streaming).

Use Case: UDP in Gaming

  • Player data (e.g., position, appearance) is sent rapidly to a central server.
  • Missed packets are acceptable due to high frequency.
  • Server-side prediction may be used to compensate for dropped packets.

Further material #

Week 11, 12 #

最終課題の期間。課題はプログラムの実装とレポートの提出。

  • Rust 言語を使用して、キャッシュメモリをシミュレートするプログラムを実装する。
  • 実装内容を詳述したレポートを最大 2,000 ワードで記述して提出する。

Write a cache simulator with source code which takes a memory trace file as input, simulates the hit/miss behaviour of a cache memory on this trace, and outputs the total number of hits, misses, and evictions.

まず、課題で何を実装するよう求められているかの理解が少々難解。その理解のためには以下の動画が参考になる。

Ep 073: Introduction to Cache Memory - YouTube #

YouTube

YouTube

YouTube

YouTube

YouTube

Ep 074: Fully Associative Caches and Replacement Algorithms - YouTube #

YouTube

YouTube

Ep 075: Direct Mapped Caches - YouTube #

YouTube
